High Speed Tilt Shift Laser Marker Rotation Axis 6600r/min 80mm

Place of Origin : Beijing, China

Brand Name : JCZ

Model Number : 80mm

contain : rotary axis + power + driver

MOQ : 1 SET

Price : USD900-1100/set

Packaging Details : carton

Delivery Time : 1 day

Payment Terms : T/T western Union

Supply Ability : 1000 set/month

Contact Now

80mm tilt angle rotary axis for laser engraving machine , Gear 8:1

Quick Detail:

Mainly used for rings, bracelets and special shape metal(engraver for metal), nonmetal workpiece inside and outside surfaces engraving.

Description:

For fixed cylindrical, annular and irregular shape of object, with marking machine to engraving on the surface. Mainly used for rings, bracelets and special shape metal, nonmetal workpiece inside and outside surfaces engraving.

Gear:8:1
Chuck diameter:80mm,100mm
Internal jaw clamping range:2-22mm
External jaw clamping range:25-70mm
Max input torque:10kN
Max clamping force:40Nm
Type:Fixed Angle, Angle adjustable

Applications:

Laser Marking
Laser Engraving
Rapid prototyping
Drilling circuit board via holes
Cutting cloth
Cutting paper

Specifications:

Basic parameters and main features

Size (Diameter):80mm

Internal jaw clamping range:2-22mm

Internal jaw jamming range:25-70mm

External jaw clamping range:22-63mm

Max input torque:40Nm

Max clamping force:10kN

Max speed:4000r/min,5000r/min,6600r/min

Geometry accuracy

Internal jaw Radial run-out 0.005

Internal jaw Axial run-out 0.005

Internal jaw Radial run-out of chuck 0.030

Internal jaw Axial run-out of chuck 0.030

Internal jaw Radial run-out of test bar 0.080

External jaw Radial run-out of test ring 0.075

External jaw Axial run-out of test ring 0.040

Internal jaw Radial run-out of tast ring 0.075

Internal jaw Axial run-out of test ring 0.040

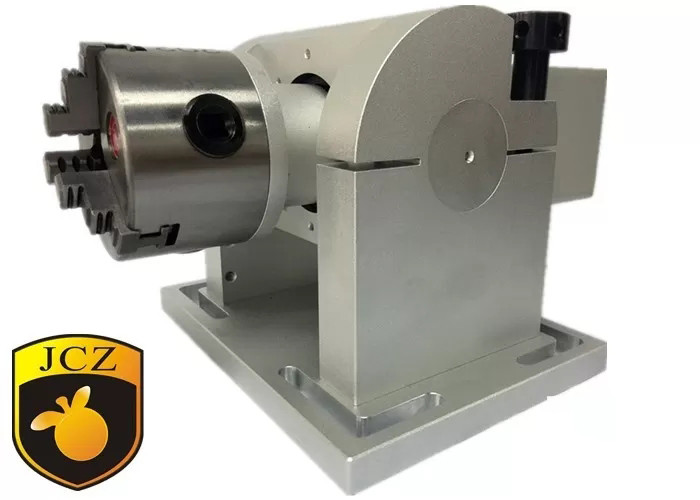

High Speed Tilt Shift Laser Marker Rotation Axis 6600r/min 80mm

Competitive Advantage:

Good quality ,work stable ,slant , cheap
